Efficient Incremental Text-to-Speech on GPUs

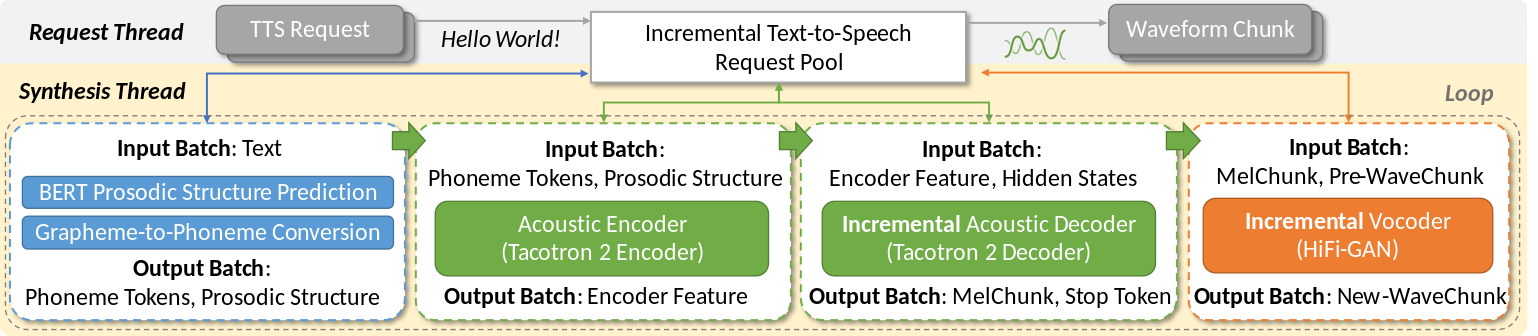

Incremental text-to-speech, also known as streaming TTS, has been increasingly applied to online speech applications that require ultra-low response latency to provide an optimal user experience. However, most of the existing speech synthesis pipelines deployed on GPU are still non-incremental, which uncovers limitations in high-concurrency scenarios, especially when the pipeline is built with end-to-end neural network models. To address this issue, we present a highly efficient approach to perform real-time incremental TTS on GPUs with Instant Request Pooling and Module-wise Dynamic Batching. Experimental results demonstrate that the proposed method is capable of producing high-quality speech with a first-chunk latency lower than 80ms under 100 QPS on a single NVIDIA A10 GPU and significantly outperforms the non-incremental twin in both concurrency and latency. Our work reveals the effectiveness of high-performance incremental TTS on GPUs.

Metrics

QPS: Queries-per-Second. The number of TTS requests sent to the server per second. FCL: First Chunk Latency. (between the request been sent and the first audio chunk been received). LCL: Last Chunk Latency. (between the request been sent and the last audio chunk being received).
RTF: Real-Time Factor. LCL/Duration for incremental synthesis and Latency/Duration for non-incremental synthesis.

Incremental Pipeline - Overlap 4

**Short Text**
QPS	FCL(ms)	LCL(ms)	RTF
10	22.48	109.58	0.041
20	25.43	123.37	0.047
30	26.45	130.42	0.049
40	26.58	139.27	0.053
50	27.00	146.58	0.055
60	30.52	159.37	0.060
70	32.04	168.60	0.064
80	33.27	176.22	0.067
90	35.76	186.99	0.071
100	37.69	200.02	0.076

**Medium Text**
QPS	FCL(ms)	LCL(ms)	RTF
10	24.92	167.39	0.041
20	26.27	184.02	0.045
30	27.17	197.99	0.048
40	28.41	218.33	0.053
50	33.41	249.08	0.061
60	35.28	270.97	0.066
70	38.16	295.36	0.072
80	43.03	330.87	0.081
90	48.46	378.39	0.093
100	56.19	438.77	0.107

**Long Text**
QPS	FCL(ms)	LCL(ms)	RTF
10	27.20	286.47	0.041
20	27.23	321.10	0.046
30	30.83	383.15	0.055
40	35.12	477.44	0.068
50	45.67	585.71	0.084
60	57.95	745.58	0.107
70	77.05	1002.56	0.143
80*	936.99	2466.44	0.352
90*	15844.50	17401.40	2.484
100*	30566.30	32131.50	4.590

**Mixed Text**
QPS	FCL(ms)	LCL(ms)	RTF
10	25.18	187.11	0.041
20	26.60	208.41	0.046
30	28.26	233.91	0.051
40	29.93	268.41	0.058
50	34.51	307.90	0.067
60	38.90	346.18	0.075
70	44.47	400.32	0.087
80	51.30	456.63	0.101
90	60.42	541.99	0.121
100	75.15	669.85	0.151

Incremental Pipeline - Overlap 8

**Short Text**
QPS	FCL(ms)	LCL(ms)	RTF
10	22.25	108.24	0.041
20	25.03	120.98	0.046
30	26.19	129.40	0.049
40	26.24	137.21	0.052
50	26.99	146.90	0.055
60	30.87	161.18	0.061
70	32.26	170.41	0.064
80	33.70	177.68	0.067
90	36.10	189.02	0.071
100	38.63	205.13	0.077

**Medium Text**
QPS	FCL(ms)	LCL(ms)	RTF
10	24.48	163.90	0.040
20	26.02	182.18	0.045
30	26.44	194.37	0.048
40	28.52	219.53	0.054
50	33.67	252.22	0.062
60	35.83	275.58	0.067
70	39.38	305.88	0.075
80	45.02	348.09	0.085
90	52.69	408.19	0.100
100	61.51	480.58	0.118

**Long Text**
QPS	FCL(ms)	LCL(ms)	RTF
10	26.26	279.01	0.040
20	27.27	314.08	0.045
30	31.03	385.89	0.055
40	37.41	493.60	0.071
50	48.61	623.64	0.089
60	61.92	798.00	0.114
70	91.42	1190.83	0.170
80*	7593.05	9227.65	1.318
90*	23025.10	24670.90	3.523
100*	37970.60	39622.70	5.661

**Mixed Text**
QPS	FCL(ms)	LCL(ms)	RTF
10	23.89	179.55	0.040
20	25.83	200.64	0.044
30	27.28	224.38	0.049
40	29.46	265.13	0.057
50	34.80	303.04	0.066
60	39.69	355.34	0.077
70	46.29	418.37	0.091
80	53.60	481.11	0.106
90	64.86	580.29	0.130
100	86.24	767.58	0.174

* The permitted max batch size is set to 128 for each module. If the number of retrieved items of a module exceeds the permitted max batch size, the excess will be skipped in the current iteration and put back into the pool to be processed in the following iterations, resulting in a backlog in the request pool.
